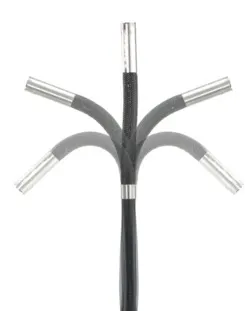

The Vividia VA-350 High Performance Video Borescope System with Articulating 5.5mm Diameter Probe and Wireless 3.5" LCD Monitor can be used to perform a detailed visual inspection in hard-to-reach areas, in total darkness or under-water. An articulating 5.5mm diameter probe with +/-110 degrees sweep, and 340-degree rotation offers a panoramic view of the area being inspected. With 3.5" detachable wireless full color LCD screen and four built-in LEDs for illumination, this camera allows you to capture snapshots or videos with rich color throughout a dynamic range from 2cm to infinity. The captured images and videos are saved in the SD card, and the data can be transferred to a PC using the provided USB cable. The waterproof camera head and cable are able to withstand wet environments. This unit is ideal for use in aircraft maintenance, machinery and production line inspection, petro-chemical and power plant inspection, general MRO and facility management where closely documented small space inspections are essential.Features· One-handed articulation function allows user to turn the probe tip to inspect targets located at sides or at an angle while inside a tight space· Articulating 5.5mm diameter probe with +/-110 degrees sweep· 340-degree rotation offers a panoramic view of the area being inspected· Takes still photos and records videos in real time, micro SD card included allows user to save pictures and videos and output later· Detachable wireless monitor is built with separate rechargeable Li Polymer battery which enables monitor to play the captured images and recorded videos independently even take off from the body· Waterproof camera head & cable meet IP67 standard (the monitor is NOT waterproof)· AV output for viewing images and videos directly on a monitorTechnical Details· Camera Sensor: 1/13” VGA CMOS (Resolution: 640x480 pixels)· Focal Range: 2cm to infinity. Fixed focus· Camera Field of View (FOV): 54°· Minimum Bending Radius: 45mm· Camera Deflection Up/Down: 220°· Camera Rotation: 340°· Illumination: 4 white LED lights with adjustable brightness· Monitor: detachable wireless 3.5” full color LCD display - Image resolution: 640 x 480 (Format: JPG) - Video resolution: 640 x 480 (Format: AVI) - Video frame rate: 30 frames/second· Micro SD card: support Micro SD card up to 32GB (4GB Micro SD card is included in the package)· Video Format: NTSC & PAL composite video· TV Cable Length: Approx. 1.5m· 4x1.5V AA battery to power the handheld unit· Built-in rechargeable Li battery to power 3.5” monitorProduct Details· Dimension: Monitor Size: 8.0”x3.5”x5.0”; Articulation probe length: 113cm (3.7ft); Camera probe diameter: 5.5mm (0.22in)· Weight: 14oz without carrying case· Package Includes: articulating 5.5mm diameter probe with 3.3ft long cable, 3.5” wireless monitor, 4GB micro SD card, 4x1.5V AA battery, USB cable (borescope to computer, charge Li battery), composite video cable, user’s manual, soft carrying bag· Manufacturer’s Warranty: 1 year
