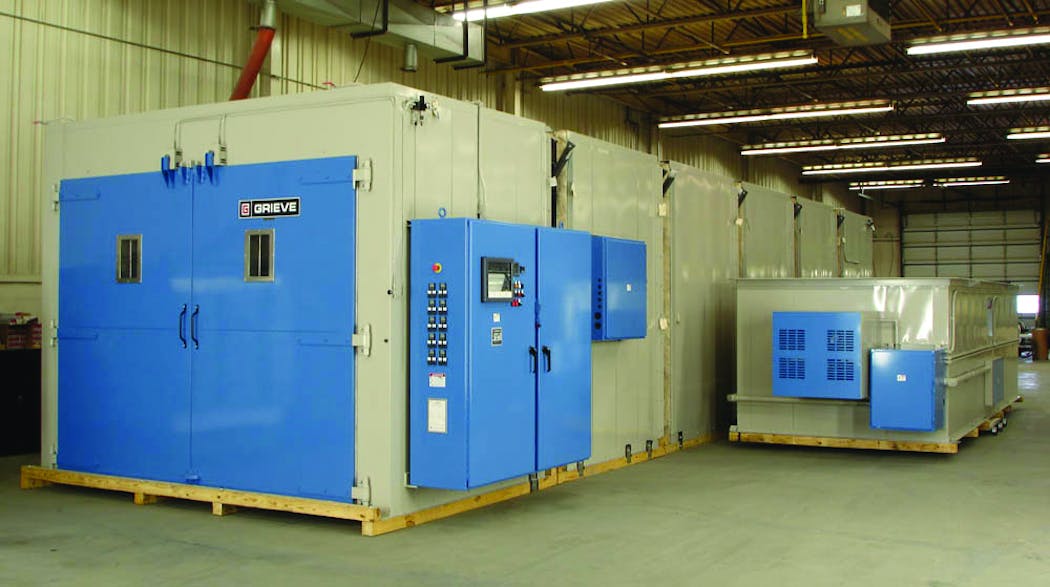

No. 999 is an electrically heated, 350 F (~176 C) jumbo combination walk-in oven from Grieve, currently used for curing composite parts at the customer’s facility. Workspace dimensions measure 10’ W x 40’ D x 8’ H. 160 kw are installed in Incoloy sheathed tubular elements to heat the unit, while two 20-hp recirculating blowers with total 49,500 cfm capacity provide combination airflow to the load. The oven features 4-inch insulated walls throughout, removable top-mounted heat chamber (shown removed in photo), aluminized steel interior and exterior, front and rear double doors with air-operated opening assist plus an 8” x 10” double pane Pyrex window in each door, 1/4-inch thick plate floor and four interior oven lights. For more nformation visit www.grievecorp.com.
